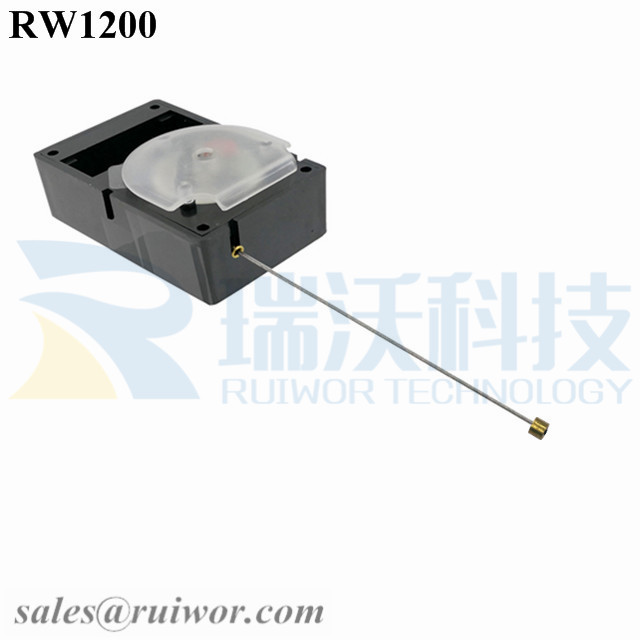

RW1200 Cuboid Alarmed Pull Box Work with Connectors Apply in Products Purchase Security Harness

Alarmed Pull Box also known as security retractable string, alarming anti theft string, alarmed recoilers, alarmed security tether and pull-box with alarm function, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.

RW1200 Alarmed Pull Box combines the Recoiler function & alarm function into one pull-box housing. When cable cut, there can be light & sound alarming indication.

RW1200 Alarmed Pull Box Parameters

● Materials: Box is made of ABS plastic, with alarming PCB, retractable spring built inside and nylon cover stainless steel cable (304 stainless steel, structure 7*7) winding onto the reel inside.
● Alarm Volume: ≥80db
● Battery: Maximum standby time: more than 1 year, Low voltage indication: red/ green LED light.

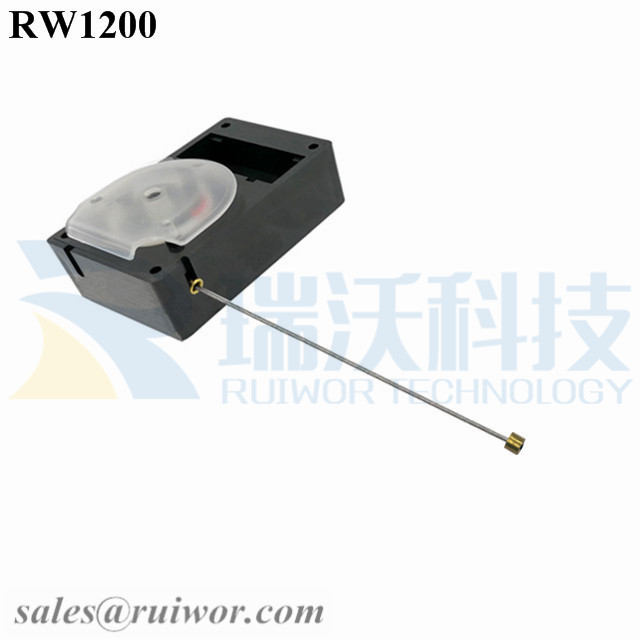

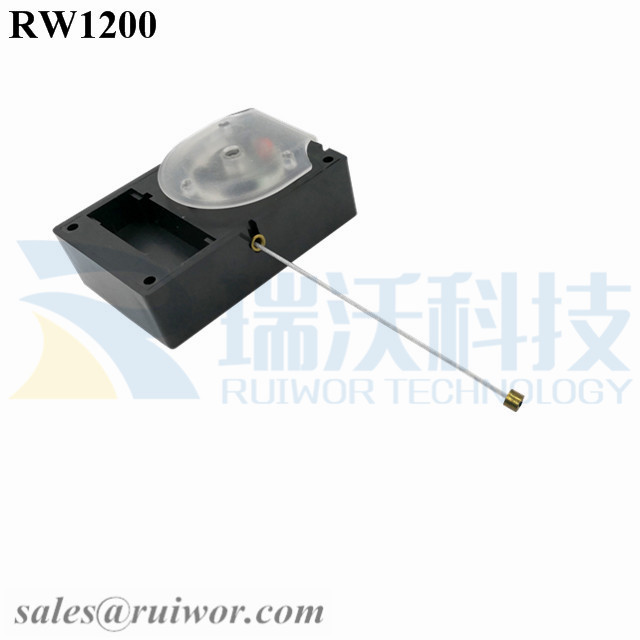

● Box fixing way: 3M double adhesive tape (Screws mounting is avaiable, the standard will be 3M Tap) ● Cable Exit Locations: B – side of the short edge. (A -side of the long edge, C - middle of the long edge are avaiable,the standard will be exit B)
● Box Size: 7.1×4.5×2.1CM
● Box Colors: Black (White and Customized color are avaiable, the standard will be Black)
● Available Retracting forces: 1/3LB (1/2LB, 1LB, 1.2LB and customized force are avaiable, the standard will be1/3LB)
● Cable Colors: Transprent nylon cover the stainless steel cable (black nylon covered and customized color are avaiable, the standard will be transprent nylon covered) ● Retractable Cable length: 96 cm (Customized length is avaiable, Max: 140cm, the standard will be 96cm)
● Cable Diameter: 1.1mm (Customized size is avaiable, the standard will be 1.1mm)
● Cable end details: 3.5MM Copper Cylinder

RW1200 Alarmed Pull Box Specifications

Remark:
For RW1200 alarmed pull box, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW1200 alarmed pull box can not meet your requirements, please return to the top and send us an inquiry to discuss more details.

Similar Products to RW1200 Alarmed Pull Box

If above RW1200 Cuboid Alarmed Pull Box is not the best product you need, Following similar Cuboid alarmed pull box for your reference:
1. The Alarmed Pull Box  with same box but different cable ends (Click on the picture to get more product information)
2. The Alarmed Pull Box with same cable ends but different box shapes (Click on the picture to get more product information)
