RW0625 Cuboid Security Pull Box Plus Pause Function and Dia 38mm Circular Adhesive Plastic Plate Connector

Security Pull Box also known as recoilers, security tether and pull-box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.

RW0625 Security Retractable Cable Reel is customized with a ratchet stop that holds the cable in one position once it is extended. The cable stays loose to allow full freedom products test for customers, and a strong tug on the cable causes it to go back into the box.

RW0625 Security Pull Box Parameters

● Materials: Box is made of ABS plastic, with retractable spring built inside and stainless steel cable winding onto the reel inside.
● Box fixing way: 3M double adhesive tape (Screws mounting is avaiable, the standard will be 3M Tap)
● Cable Exit Locations: B – side of the short edge. (A -side of the long edge, C - middle of the long edge are avaiable,the standard will be exit B)
● Box Size: 71x45x21MM
● Box Colors: Black (Customized color are avaiable, the standard will be Black)
● Available Retracting forces: 1/3LB (1/2LB, 1LB, 1.2LB and customized force are avaiable, the standard will be 1/3LB)
● Cable Colors: Transparent nylon cover the stainless steel cable (Black nylon covered and customized color are avaiable, the standard will be Transprent nylon covered)
● Retractable Cable length: 95 cm (Customized length is avaiable, Max: 300cm, the standard will be 95cm)
● Cable Diameter: 1.1mm (0.6mm, 1.2mm, 1.5mm and customized size are avaiable, the standard will be 1.1mm)
● Cable end details: Φ38MM Circular Adhesive Plastic Plate

RW0625 Security Pull Box Specifications

Remark:
For RW0625 security pull box, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW0625 security pull box can not meet your requirements, please return to the top and send us an inquiry to discuss more details.

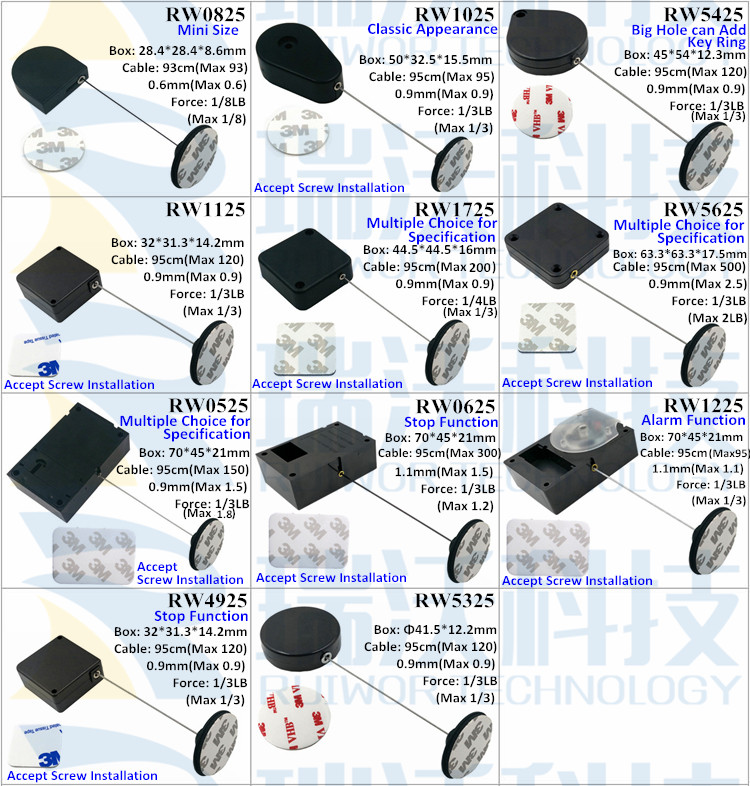

Similar Products to RW0625 Security Pull Box

If above RW0625 Cuboid security pull box is not the best product you need, Following similar Cuboid security pull box for your reference:
1. The Security Pull Box with same box but different cable ends (Click on the picture to get more product information)

2. The Security Pull Box with same cable ends but different box shapes (Click on the picture to get more product information)
